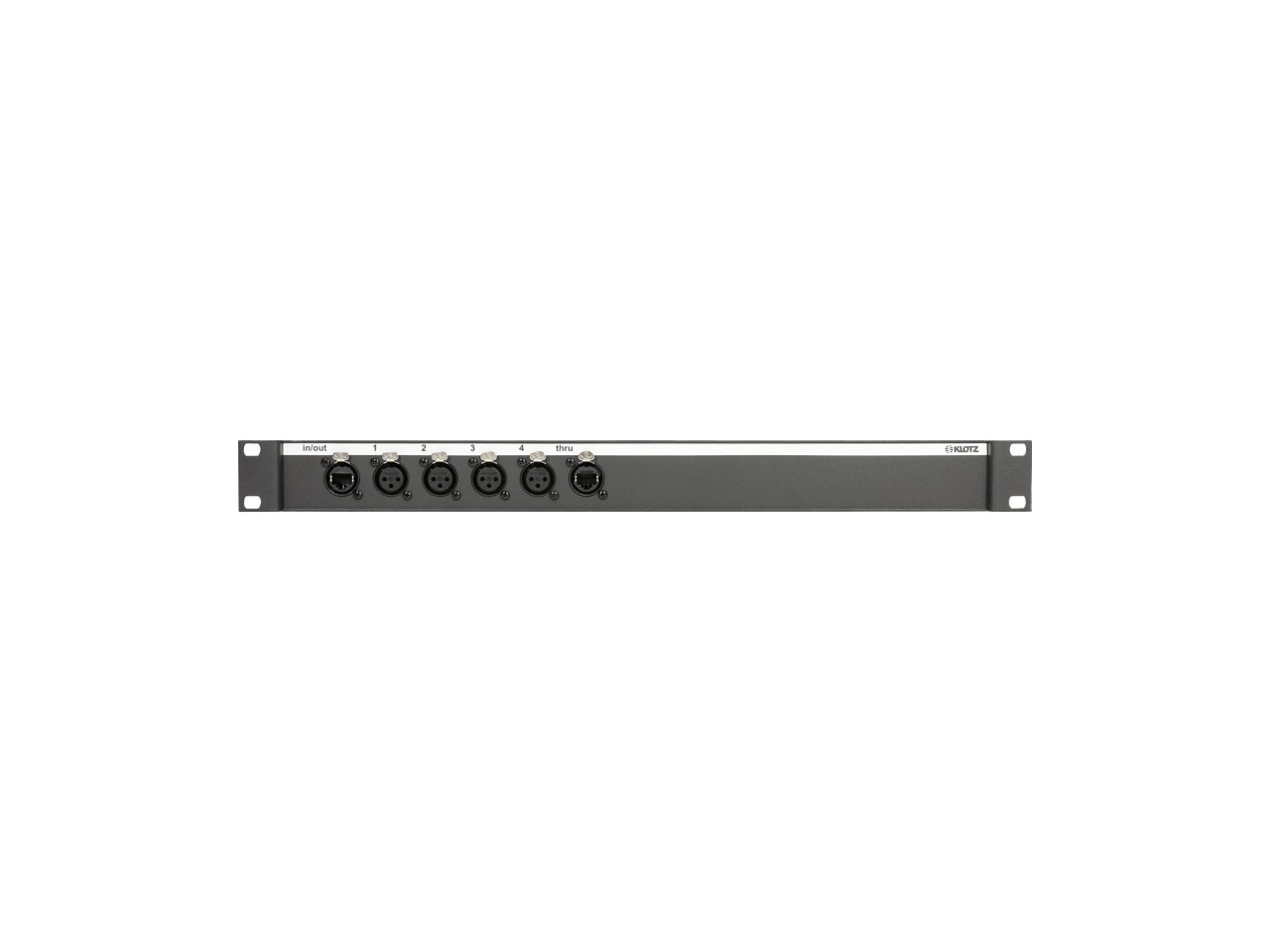

Klotz CATLink RACK 4-channel audio paneletherCON F||F - 4x XLR 3p F

• CATLink 4-channel Mic / Line / AES audio stagebox
• transmission of 4 audio signals analog (Line, Mic, 48V)
• transmission of 4 AES/EBU audio signals digital (4x stereo / 8x audio)
• transmission of 4 digital control signals (DMX, MIDI)
• D-Sub 15p connection wired in parallel for internal rack cabling
• light weight and solid 19" metal housing
• for network cables with complete shielding (e.g. RC5EE)

KLOTZ CATLink products are able to transmit four analogue audio signals (mic, line), eight digital audio signals (4x AES/EBU) or four DMX/MIDI signals over distances of up to 100 m with complete stability via a network cable with overall shield. Rugged and robust, KLOTZ CATLink 19” Stage Boxes are always dependable companions where professionalism is required. The parallel configured D-Sub 15p connectors on the back can be used as both inputs and outputs. KLOTZ supplies an extensive range of D-Sub 15p breakout cables with XLR 3p, XLR 5p or TRS connectors for the purpose, guaranteeing maximum flexibility for professional stage operations. CATLink 19” Stage Boxes are great for a whole range of roles, from small sub-stage boxes to complete multicore systems. The ideal choice for transmitting signals from the stage to the FOH or submixer and back. We recommend using a network conductor with overall shield (KLOTZ RC5EE) as a connection cable to ensure the four separate channels share a common earth.

box

housing: 19", 1 RU, metal

dimension: w=482 mm; d= 94 mm; h= 44 mm

housing color: black

connectors

connector 1: 4x XLR 3p female || D-Sub 15p socket (parallel)

multipin: 2x etherCON female (in/thru)

Caracteristici

channels	4
multipin	2x etherCON female (in/thru)
XLR inputs	4x XLR 3p.
XLR outputs	0
